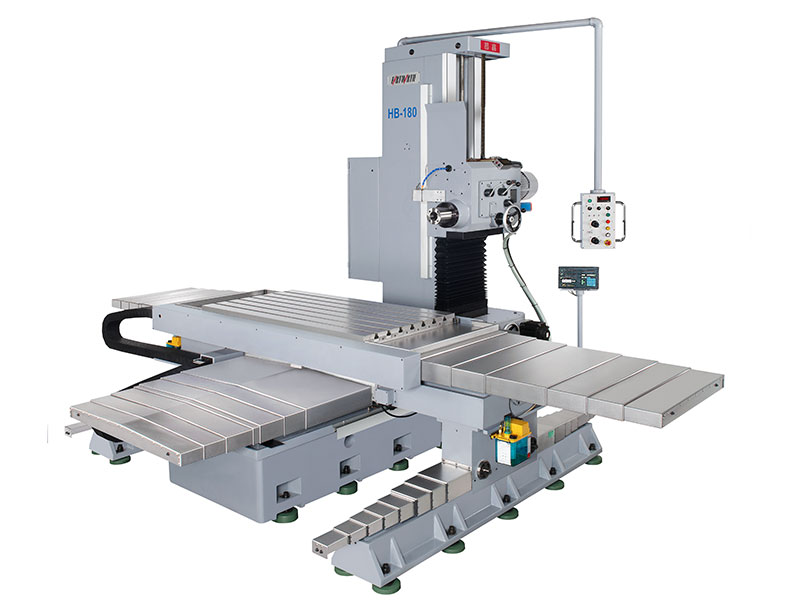

CS-HB180

Standards

  • Automatic Lubrication System
  • Coolant System
  • Index table 800x800mm,72 divisions
  • Air power draw-bar
  • With Digital Read Out
  • X & Z axis with ballscrews
  • Tapping function
  • X.Y & Z-AXIS WITH HYDRAULIC CLAMP
  • Tool box with adjustment tools
  • Leveling blocks and bolts

Optional

  • X, Y, Z with MPG

specification All SERIES

ITEM   UNIT CS-HB140 CS-HB180 CS-HB-160R HBM-110P
CAPACITY
Table travel (X axis)   mm 1,400 (55-3/32 inch) 1,800 (70-13/16 inch) 1,600 (63 inch) 1,800 (70-13/16 inch)
Head travel (Y axis)   mm 1,200 (47-3/16 inch) 1,400 (55-3/32 inch) 1,160 (45-6/9 inch) 1,000 (39-3/8 inch)

Table travel (Z axis)

  mm 1,100 (43-1/4 inch) 1,250 (49-3/16 inch) 1,250 (49-3/16 inch) 1,250 (49-3/16 inch)
W axis (Spindle axial)   mm       400 (15-3/4 inch)
Spindle center to table top   mm 0 ~ 1,200 (0 ~ 47-3/16 inch) 0 ~ 1,400 (0 ~ 55-3/32 inch) 0~1,160
(0~45-6/9 inch)
240~1,240
(9-3/7~48-4/5 inch)
Spindle end to table center   mm 255 ~ 1,355
(10 ~ 53-1/4 inch)
255 ~ 1,505
(10 ~ 59-1/4 inch)
276~1,526
(10-6/7~60 inch)
380~1,630
(15~64-1/5 inch)
TABLE
Table size overall   mm 1,100 x 800
(43-1/4 x 31-1/2 inch)
1,500 x 800
(59 x 31-1/2 inch)
1,000x800
(39-3/8 x 31-1/2 inch)
1,500x800
(59 x 31-1/2 inch)
T slot (Wide x No. x Pitch)   mm 20 x 7 x 100
(0.78 x 7 x 3-7/8 inch)
20 x 7 x 100
(0.78 x 7 x 3-7/8 inch)
22H8x7x100
(0.87x7x3-7/8 inch)
20x7x100
(0.78x7x3-7/8 inch)
Table indexing
(360 degree)
  degree - - 1 degree / division -
Table load capacity max.   kg 1,400 (3,090 lbs) 2,000(4,400 lbs) 2,500(5,500 lbs) 3,000(6,620 lbs)
SPINDLE HEAD
Spindle nose     ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50
Spindle diameter   mm - - - 110
Spindle speed 50Hz; 12 steps rpm 35 ~ 1,250 35 ~ 1,250 35 ~ 1,250 20 ~ 1,000
60Hz; 12 steps rpm 45 ~ 1,500 (opt. 30 ~ 1000) 45 ~ 1,500 (opt. 30 ~ 1000) 45 ~ 1,500
FEED / RAPID
X, Y, Z rapid 50Hz mm/min 2,400 (94-7/16 ipm) 2,400 (94-7/16 ipm) 2,800 (110-1/4 ipm) 2,800 (110-1/4 ipm) 2,800 (110-1/4 ipm)
60Hz mm/min 2,880 (113-3/8 ipm) 2,880 (113-3/8 ipm)
W rapid   mm/min - - - 1,200
X, Y, Z auto feed 50Hz mm/min 23 ~ 730
(15/16~28-3/4 ipm)
23 ~ 730
(15/16~28-3/4 ipm)
20 ~ 950
(3-4 ~ 37-3/8 ipm)
3 ~ 950
(1/8~37-3/8 ipm)
3 ~ 950
(1/8~37-3/8 ipm)
60Hz mm/min 28 ~ 875
(1-1/8 ~ 34-7/16 ipm)
28 ~875
(1-1/8 ~ 34-7/16 ipm)
W feed   mm/min - - - 3 ~ 400
Change of feeds     - - Infinitely variable Variable speed
Z axis boring feeds (12 steps)   mm/rev 0.028 ~ 0.875 0.028 ~ 0.875 - -
MOTORS
Spindle motor   kW AC 7.5 (10HP)-4P AC 7.5 (10HP)-4P AC 7.5 (10HP)-4P AC15
Feed motor   kW AC 1.5 (2HP)-4P AC 1.5 (2HP)-4P AC 2.9 (3.8HP)
servo motor
- -
Feed motor for X, Y, Z axis (Servo)   kW - - AC2.9 AC2.9
Feed motor for W axis (Servo)   kW - - - 1.3
Lube pump for headstock   kW AC0.18-4P AC0.18-4P AC0.2-4P AC0.2-4P
Lube pump for slideways   W AC3.5 AC3.5 AC3.5-2P AC3.5-2P
Coolant pump   kW AC 0.12(1/6HP)-2P AC 0.12(1/6HP)-2P AC 0.12(1/6HP)-2P AC 0.12(1/6HP)-2P
Hydraulic pump for axis clamp   kW AC 1.5(2HP)-4P AC 1.5(2HP)-4P AC 1.5(2HP)-4P AC 1.5(2HP)-4P
MACHINE SIZE
Machine height   mm 2,800(110 inch) 3,070(120-13/16 inch) 3,070(120-13/16 inch) 3,175(125 inch)
Floor space
(Longitudinal x cross)
  mm 3,606 x 3,600
(142 x 141-3/4 inch)
4,420 x 3,750
(174 x 147-5/8 inch)
3,874 x 4,373
(152-1/2x172 inch)
3,874 x 4,373
(152-1/2x172 inch)
Net weight (Approx.)   kg 8,400 (18,520 lbs) 11,500 (25,350 lbs) 11,200 (24,690 lbs) 12,500 (27,560 lbs)
Standard color   - Gray Gray - -
*Design and specifications are subject to change without prior notice.
