CNC HORIZONTAL BORING & MILLING MACHINE

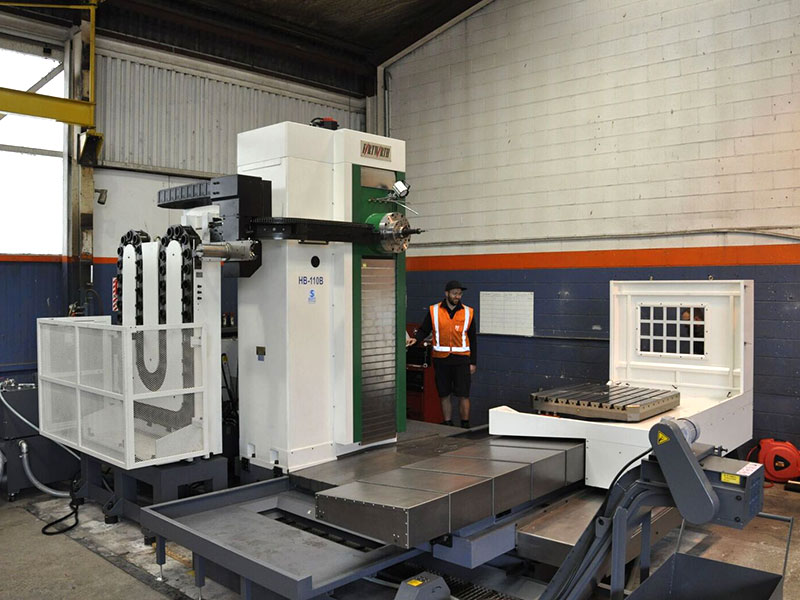

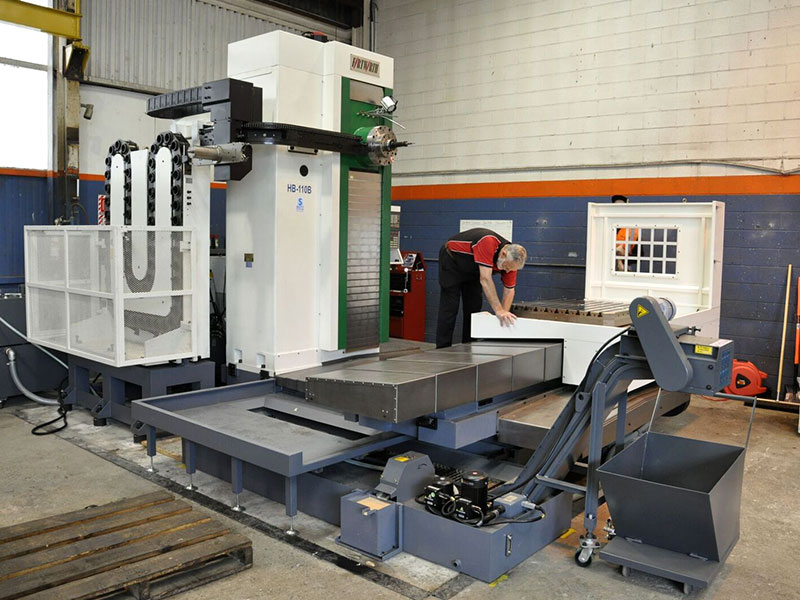

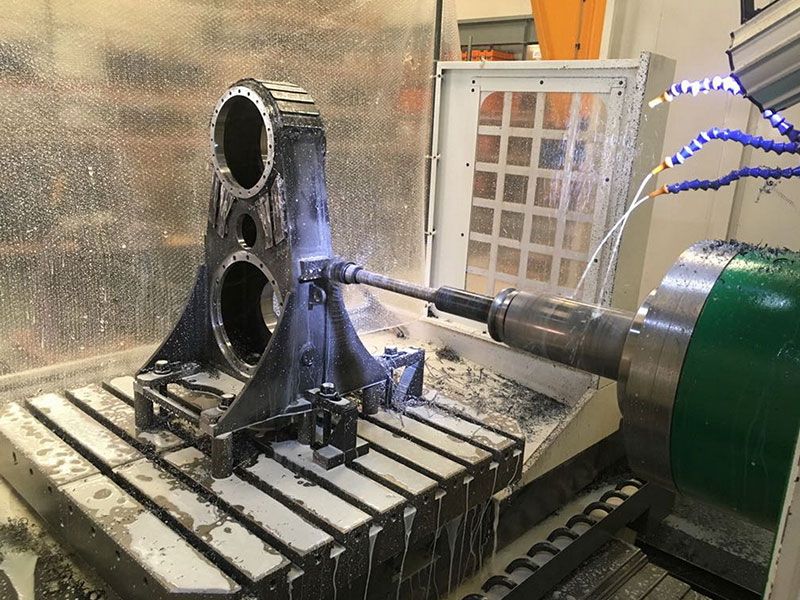

CNC HORIZONTAL BORING & MILLING MACHINE - HB-110B
CNC HORIZONTAL BORING & MILLING MACHINE - HB-110B
CNC HORIZONTAL BORING & MILLING MACHINE - HB-110B
CNC HORIZONTAL BORING & MILLING MACHINE - HB-110B
HB-110B

Standards

  • Spindle oil cooler
  • Centralized auto lubrication system
  • Coolant system
  • Air blow
  • HEAT EXCHANGER for cabinet
  • Work lamp
  • CHIP AUGER
  • M30 Automatic power off
  • Portable MPG handwheel
  • Alarm lamp
  • Tool box with adjustment tools
  • Leveling blocks and bolts

Optional

  • Coolant thru spindle with pressure 20 bar
  • Chip conveyor with bucket
  • Spindle support
  • Table splash guard
  • Transformer for OTHER THAN 220V
  • Right angle milling head
  • Angle plate
  • Oil skimmer

specification ALL SERIES

ITEM UNIT HB-800A HB-110B HB-110A HB-110-20T HB-110-30T
    FIXED COLUMN FIXED COLUMN MOVEABLE COLUMN MOVEABLE COLUMN
TABLE
Table size mm 1,000 x 1,000
(39-3/8 x 39-3/8 inch)
1,000 x 1,000
(39-3/8 x 39-3/8 inch)
1,200 x 1,000 1,500 x 1,200
(59 x 47-1/4 inch)
1500 x 1200
(59 x 47-1/4 inch)
T slot (Wide x No. x Pitch) mm 22H8 x 9 x 100
(0.86 x 9 x 4 inch)
22H8 x 9 x 100
(0.86 x 9 x 4 inch)
22H7 x 7 x 125 mm 22H8 x 7 x 150
(0.86 x 7 x 6 inch)
22H8 x 7 x 150
(0.86 x 7 x 6 inch)
Max load capacity kg 3,000 (6,600 lbs) 3,000 (6,600 lbs) 4,500 5,000 (11,000 lbs) 5000(11,000 lbs)
Min. indexing unit deg 1° (360 divisions) 1° (360 divisions) 0.001° 0.001°
(Every 90 deg with locating pin)
Min. input 0.001
(Every 90 deg with locating pin)
B axis rapid feed rpm 4 4 2 2 2
Table height from ground mm 1,103 (43-7/16 inch) 1,103 (43-7/16 inch) 1,145 1,095 (43-1/8 inch) 1095 (43-1/8 inch)
CAPACITY
X axis travel mm 2,000 (78-3/4 inch) 2,000 (78-3/4 inch) 1,800 2,000 (78-3/4 inch)
[3,000 opt. (118-1/8 inch) opt.]
3000 (118-1/8 inch)
Y axis travel mm 1,200 (47-1/4 inch) 1,400 (55-3/32 inch) 1,350 1,500 (59 inch) 1500 (option 1800)
Z axis travel mm 1,200 (47-1/4 inch) 1,150 (45-1/4 inch) 1,020 1,400 (55-3/32 inch) 1400 (55-3/32 inch)
W axis travel mm - 500 (19-11/16 inch) 550 (21-5/8 inch) 550 (21-5/8 inch) 550 (21-5/8 inch)
Spindle nose to table center mm 275 ~ 1,475
(10-13/16 ~ 58 inch)
-175 ~ 1,475
( - 6-7/8 ~ 58 inch)
-145 ~ 1,425 -30 ~ 1,920
( - 1-3/16 ~ 75.1/2 inch)
-30 ~ 1920
( - 1-3/16 ~ 75.1/2 inch)
Spindle center to table top mm 0 ~ 1,200
(0 ~ 47-1/4 inch)
0 ~ 1,400
(0 ~ 55-3/32 inch)
0 ~ 1,350 0 ~ 1,500
(0 ~ 59 inch)
0 ~ 1500
(option 1800)
SPINDLE
Spindle nose mm BT50 BT50 BT50 BT50 BT50
Spindle diameter mm - 110 110 110 110
Output max. kg-m - 135 135 135 135
Spindle speed
(2 ranges)
Lo-speed rpm 30 ~ 1300
5 ~ 625 5 ~ 625 5 ~ 625 5 ~ 625
Hi-speed 1,301 ~ 3,000 626 ~ 2,500 626 ~ 2,500 626 ~ 2,500 626 ~ 2,500
FEED
Rapid X, Y, Z, W axis m/min 15 / 12 / 15 / - 15 / 12 / 15 / 6 15 / 12 / 15 / 6 10 / 10 / 10 / 6 10 / 10 / 10 / 6
Rapid table rotation rpm 4 4 2 2 2
Feed rate of X, Y, Z axis mm/min 1 ~ 6,000 1 ~ 6,000 1 ~ 6,000 1 ~ 6,000 1 ~ 6,000
Feed rate of W axis mm/min - 1 ~ 4,000 1 ~ 4,000 1 ~ 4,000 1 ~ 4,000
X, Y, Z axis ballscrew (Dia. / Pitch) mm 50 / 10 50 / 10 50 / 10 63 / 10 63 / 10
W axis ballscrew (Dia. / Pitch) mm - 40 / 10 40 / 10 40 / 10 40 / 10
A.T.C.
Magazine capacity pcs 60 60 60 60 60
Pull stud - MAS-P50T-1 MAS-P50T-1 MAS-P50T-1 MAS-P50T-1 MAS-P50T-1
Max. tool length mm 400 400 400 400 400
Max. tool weight kg 25 25 25 25 25
Max. tool diameter mm Ø125 / Ø250
(w/o adjacent tool)
Ø125 / Ø250
(w/o adjacent tool)
Ø125 / Ø250
(w/o adjacent tool)
Ø125 / Ø250
(w/o adjacent tool)
Ø125 / Ø250
(w/o adjacent tool)
Tool selection - Shortest path in sequence Shortest path in sequence Shortest path in sequence Shortest path in sequence Shortest path in sequence
Tool change time(approx) sec 15 15 15 15 15
MOTORS
Spindle motor kW 15 / 18.5 22 / 26 22 / 26 22 / 26 22 / 26
Servo motor for X, Y, Z, B, W kW 7 / 7 / 7 / 4 7 / 6 / 7 / 4 / 7 7 / 6 / 7 / 7 / 7 6 / 6 / 6 / 7 / 7 6 / 6 / 6 / 7 / 7
Centralized lubrication pump W 150 150 150 150*2 150*2
Hydraulic pump kW 2.2 3.7 3.7 3.7 3.7
Spindle oil cooler pump kW 0.75 1.95 1.95 1.95 1.95
Coolant pump kW 1 1 1 1 1
GENERAL INFORMATION
Pneumatic required kg/cm2 6 6 6 6 6
Coolant tank L 350 350 250 250 250
Machine dimension mm 5,030 x 5,100 x 3,250 4,285 x 5,587 x 3,605 4,285 x 5,587 x 3,605 4,480 x 5,510 x 3,820 5,600 x 5,510 x 3,820
Machine weight (Approx.) kg 18,000 (39,600 lbs) 21,000 (46,200 lbs) 22,000 24,500 (53,900 lbs) 25,800 (56,760 lbs)
CNC control - Fanuc 0i-MF FS-0i-MF Fanuc 0i-MF FS-0i-MF Fanuc 0i-MF
*Design and specifications are subject to change without prior notice.
