Bed Type Vertical with Horizontal Boring & Milling Machine

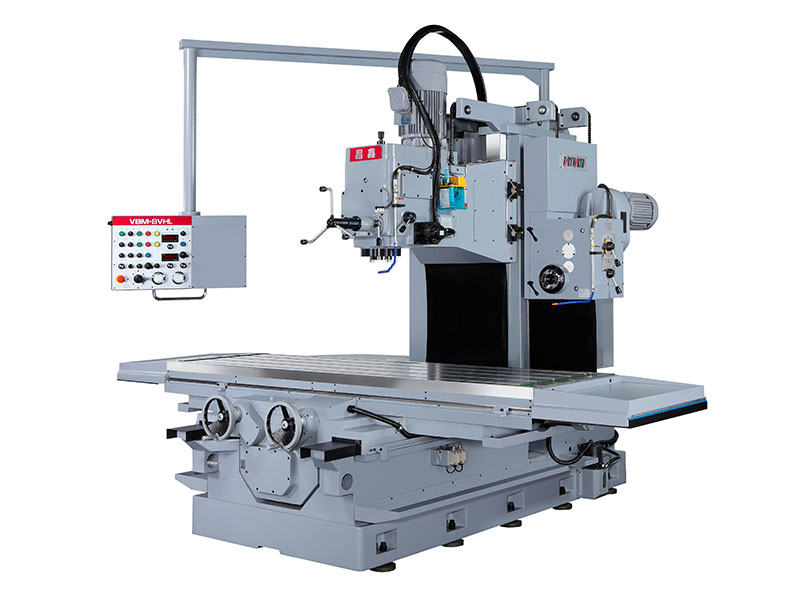

Bed Type Vertical with Horizontal Boring & Milling Machine CS-VBM-8VHL
CS-VBM-8VHL

Standards

  • Cutting fluid DEVICE 1 unit
  • Tools and box 1 set
  • Leveling blocks 10 pcs
  • Leveling bolts and nuts 10 sets
  • Draw bar 1 pc

Optional

  • Digital read out
  • Air power draw bar
  • Working lamp

specification ALL SERIES

ITEM UNIT CS-VBM-5VHL CS-VBM-5VHL-L CS-VBM-8VHL CS-VBM-8VHL-L CS-VBM-5VHD
CAPACITY
Table travel (Longitudinal) mm 1,500 (59 inch) 2,000 (78-3/4 inch) 2,000 (78-3/4 inch) 2,500 (98-7/16 inch) 1500(59 inch)
Table travel (Cross) mm 600 (23-5/8 inch) 600 (23-5/8 inch) 800 (31-1/2 inch) 800 (31-1/2 inch) 600 (23-5/8 inch)
Vertical spindle head travel (Vertical) mm 700 (27-9/16 inch) 700 (27-9/16 inch) 700 (27-9/16 inch) 700 (27-9/16 inch) 700 (27-9/16 inch)
Horizontal spindle head travel (Vertical) mm 650 (25-9/16 inch) 650 (25-9/16 inch) 650 (25-9/16 inch) 650 (25-9/16 inch) 650 (25-9/16 inch)
Vertical spindle nose to table top mm 100 ~ 800
(3-15/16 ~ 31-1/2 inch)
100 ~ 800
(3-15/16 ~ 31-1/2 inch)
70 ~ 770
(2-3/4 ~ 30-1/4 inch)
70 ~ 770
(2-3/4 ~ 30-1/4 inch)
100 ~ 800
(3-15/16 ~ 31-1/2 inch)
Vertical spindle center to column front mm 550 (21-5/8 inch) 550 (21-5/8 inch) 800 (31-1/2 inch) 800 (31-1/2 inch) 550 (21-5/8 inch)
Distance between Horizontal &
Vertical spindle center
mm 550 (21-5/8 inch) 550 (21-5/8 inch) 610 (24 inch) 610 (24 inch) 558 (21-15/16 inch)
TABLE
Table working area mm 2,200 x 500
(86-5/8 x 19-11/16 inch)
2,700 x 500
(106-1/4 x 19-11/16 inch)
2,700 x 750
(106-1/4 x 29-1/2 inch)
3,200 x 750
(126 x 29-1/2 inch)
2,200 x 500
(86-5/8 x 19-11/16 inch)
T slot (Wide x No. x Pitch) mm 18 x 5 x 90
(0.709 x 5 x 3-9/16 inch)
18 x 5 x 90
(0.709 x 5 x 3-9/16 inch)
18 x 5 x 150
(0.709 x 5 x 5-7/8 inch)
18 x 5 x 150
(0.709 x 5 x 5-7/8 inch)
18 x 5 x 90
(0.709 x 5 x 3-9/16 inch)
Table top to floor mm 870 (34-1/4 inch) 870 (34-1/4 inch) 900 (35-7/16 inch) 900 (35-7/16 inch) 870 (34-1/4 inch)
SPINDLE HEAD
Spindle nose   ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50
Vertical Spindle speeds rpm 50Hz 35~1,250 50Hz 35~1,250 Low 45~250 Low 45~250 60Hz 45-1500
60Hz 45~1,500 60Hz 45~1,500 Hight 250~1,500 /
Infinitely variable
Hight 250~1,500 /
Infinitely variable
Horizontal spindle speeds rpm 50Hz 34~1,210 50Hz 34~1,210 40 ~ 1,450
(60Hz) / 12 steps
40 ~ 1,450
(60Hz) / 12 steps
40-1000
60Hz 40~1,450 60Hz 40~1,450
No. of Vertical spindle speed steps 12 12 2 2 4
No. of Horizontal spindle speed steps 12 12 12 12 2
Horizontal spindle quill travel mm - - - - 100(3-15/16 inch)
Feeds (Vertical spindle) mm/rev. 0.05 ~ 0.2
(0.0025 ~ 0.01 ipr)
0.05 ~ 0.2
(0.0025 ~ 0.01 ipr)
3 ~ 300 mm/min
(0.12 ~ 11.81 ipm)
3 ~ 300 mm/min
(0.12 ~ 11.81 ipm)
0.05 ~ 0.2
(0.0025 ~ 0.01 ipr)
FEED / RAPID
Rapid traverse (Longitudinal & cross) mm/min 3,300 (129-7/8 ipm) 3,300 (129-7/8 ipm) 3,100 (122 ipm) 3,100 (122 ipm) 3,300 (129-7/8 ipm)(60HZ)
W axis rapid traverse (Vertical) mm/min 3,800 (150 ipm) 3,800 (150 ipm) 3,800 (150 ipm) 3,800 (150 ipm) 3,800 (150 ipm)(60HZ)
Feed rates (Longitudinal & cross) mm/min 28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)(60HZ)
Horizontal feed rates (Vertical) mm/min 28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)(60HZ)
Change of feeds   Infinitely variable Infinitely variable Infinitely variable Infinitely variable Infinitely variable
MOTORS
Vertical spindle kW AC 11 (15HP)-4P AC 11 (15HP)-4P AC 11 (15HP)-4P
(Inverter motor)
AC 11 (15HP)-4P
(Inverter motor)
AC 11 (15HP)-4P
Horizontal spindle kW AC 5.5 (7.5HP)-6P AC 5.5 (7.5HP)-6P AC 5.5 (7.5HP)-6P AC 5.5 (7.5HP)-6P AC 7.5 (10HP)-4P
Feed of X, Y axis kW AC 3.5 (4.7HP)
Servo motor
AC 3.5 (4.7HP)
Servo motor
AC 3.5 (4.7HP)
Servo motor
AC 3.5 (4.7HP)
Servo motor
AC 3.5 (4.7HP)
Servo motor
Feed of Z axis kW - - AC 1.3 (1.75HP)
Servo motor
AC 1.3 (1.75HP)
Servo motor
-
Feed of W axis kW AC 0.85 (1.14HP)
Servo motor
AC 0.85 (1.14HP)
Servo motor
AC 0.85 (1.14HP)
Servo motor
AC 0.85 (1.14HP)
Servo motor
AC 0.85 (1.14HP)
Servo motor
Lubrication W AC 3.5 AC 3.5 AC 3.5 AC 3.5 AC 3.5
Cutting fluid kW AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P
MACHINE SIZE
Machine height mm 2,870 (113 inch) 2,870 (113 inch) 3,198 (126 inch) 3,198 (126 inch) 2,870 (113 inch)
Floor space (Longitudinal x cross) mm 4,440 x 2,550
(174-7/8 x 100-3/8 inch)
5,690 x 2,550
(224 x 100-3/8 inch)
5,694 x 3,075
(224-3/16 x 121 inch)
6,940 x 3,075
(273-1/4 x 121 inch)
4,440 x 2,500
(174-7/8 x 100-3/8 inch)
Net weight (approx.) kg 8,700 (19,140 lbs) 9,400 (20,680 lbs) 13,000 (28,650 lbs) 14,400 (31,680 lbs) 8,700 (19,140 lbs)
Standard color   Gray Gray Gray Gray Gray
*Design and specifications are subject to change without prior notice.
