Bed Type Vertical Boring & Milling Machine

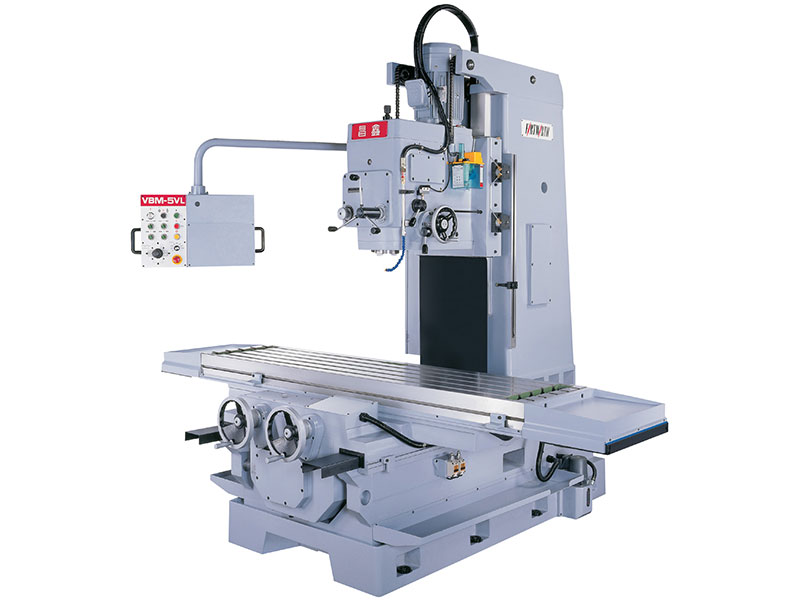

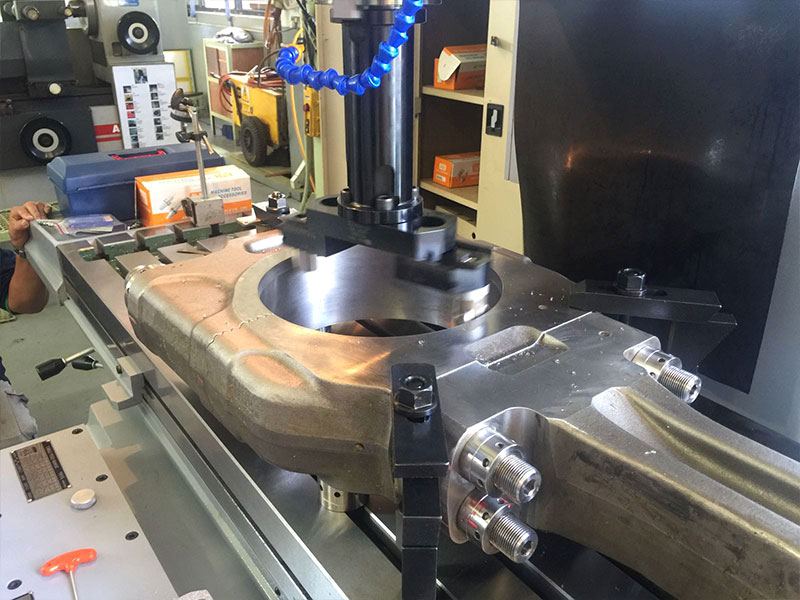

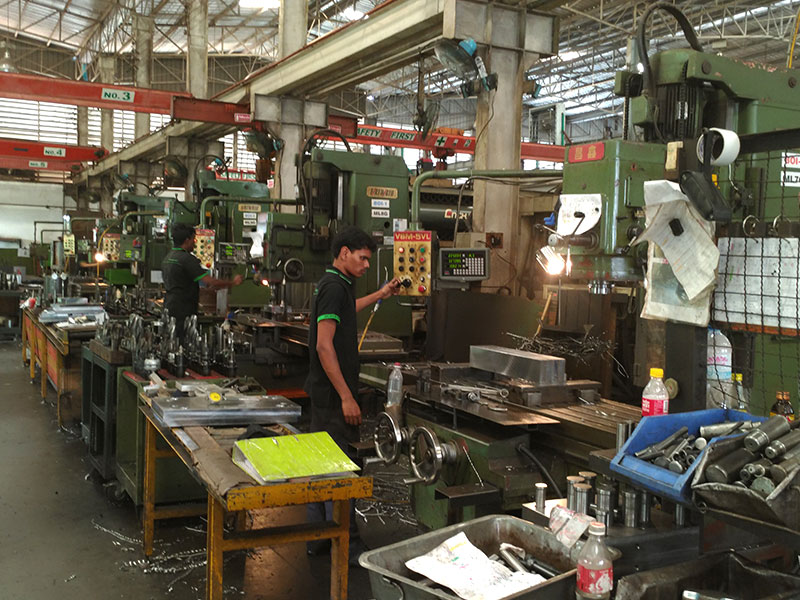

Bed Type Vertical Boring & Milling Machine CS-VBM-5VL
CS-VBM-5VL

Standards

  • Cutting fluid device 1 unit
  • Tools and box 1 set
  • Leveling blocks 8 pcs
  • Leveling bolts & nuts 8 sets
  • Draw bar 1 pc

Optional

  • Digital read out
  • Air power draw bar
  • Working lamp

specification ALL SERIES

ITEM UNIT CS-VBM-3V-A CS-VBM-4V CS-VBM-5VL CS-VBM-5VL-L CS-VBM-8VL CS-VBM-8VL-L
CAPACITY
Table travel (Longitudinal) mm 1,000 (39-3/8 inch) 1,200 (47-1/4 inch) 1,500 (59 inch) 2,000 (78-3/4 inch) 2,000 (78-3/4 inch) 2,500 (98-7/16 inch)
Table travel (Cross) mm 380 (14-15/16 inch) 450 (17-11/16 inch) 600 (23-5/8 inch) 600 (23-5/8 inch) 800 (31-1/2 inch) 800 (31-1/2 inch)
Spindle head travel (Vertical) mm 500 (19-11/16 inch) 550 (21-5/8 inch) 700 (27-9/16 inch) 700 (27-9/16 inch) 700 (27-9/16 inch) 700 (27-9/16 inch)
Spindle nose to table top mm 100 ~ 600
(3-15/16 ~ 23-5/8 inch)
100 ~ 650
(3-15/16 ~ 25-5/8 inch)
100 ~ 800
(3-15/16 ~ 31-1/2 inch)
100 ~ 800
(3-15/16 ~ 31-1/2 inch)
70 ~ 770
(2-3/4 ~ 30-1/4 inch)
70 ~ 770
(2-3/4 ~ 30-1/4 inch)
Spindle center to column mm 380 (14-15/16 inch) 450 (17-11/16 inch) 550 (21-5/8 inch) 550 (21-5/8 inch) 800 (31-1/2 inch) 800 (31-1/2 inch)
TABLE
Table working area mm 1,700 x 380
(67 x 14-15/16 inch)
1,900 x 450
(74-13/16 x 17-11/16 inch)
2,200 x 500
(86-5/8 x 19-11/16 inch)
2,700 x 500
(106-1/4 x 19-11/16 inch)
2,700 x 750
(106-1/4 x 29-1/2 inch)
3,200 x 750
(126 x 29-1/2 inch)
T slot (Wide x No. x Pitch) mm 18 x 5 x 70
(0.709 x 5 x 2-3/4 inch)
18 x 5 x 80
(0.709 x 5 x 3-1/8 inch)
18 x 5 x 90
(0.709 x 5 x 3-9/16 inch)
18 x 5 x 90
(0.709 x 5 x 3-9/16 inch)
18 x 5 x 150
(0.709 x 5 x 5-7/8 inch)
18 x 5 x 150
(0.709 x 5 x 5-7/8 inch)
Table top to floor mm 800 (31-1/2 inch) 850 (33-1/2 inch) 870 (34-1/4 inch) 870 (34-1/4 inch) 900 (35-7/16 inch) 900 (35-7/16 inch)
SPINDLE HEAD
Spindle nose   ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50 ISO R297 No.50
Spindle speed rpm 50Hz 35 ~ 1,250 50Hz 35~1,250 50Hz 35~1,250 50Hz 35~1,250 Low 45~250 Low 45~250
60Hz 45 ~ 1,500 60Hz 45~1,500 60Hz 45~1,500 60Hz 45~1,500 High 250~1,500 /
Infinitely variable
High 250~1,500 /
Infinitely variable
No. of spindle speed steps 12 12 12 12 2 2
Z axis feeds (Vertical spindle) mm/min - - - - 3 ~ 300
(0.12 ~ 11.81 ipm)
3 ~ 300
(0.12 ~ 11.81 ipm)
Feeds (Vertical spindle) mm/rev. 0.05 ~ 0.2
(0.002 ~ 0.008 ipr)
0.05 ~ 0.2
(0.002 ~ 0.008 ipr)
0.05 ~ 0.2
(0.002 ~ 0.008 ipr)
0.05 ~ 0.2
(0.002 ~ 0.008 ipr)
- -
FEED / RAPID
Rapid traverse
(Longitudinal & cross)
mm/min 2,800 (110 ipm) 50Hz 2,400
(94-7-16 ipm)
3,300 (129-7/8 ipm) 3,300 (129-7/8 ipm) 3,100 (122 ipm) 3,100 (122 ipm)
60Hz 2,880
(113-3/8 ipm)
Feed rates
(Longitudinal & cross)
mm/min 28 ~ 1,000
(1-1/8 ~39-3/8 ipm)
50Hz 23 ~ 730
(7/8 ~ 28-3/4 ipm)
28 ~ 1,000
( 1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
28 ~ 1,000
(1-1/8 ~ 39-3/8 ipm)
60Hz 28 ~ 875
(1-1/8 ~ 34-7/16 ipm)
Change of feeds steps Infinitely variable 12 Infinitely variable Infinitely variable Infinitely variable Infinitely variable
MOTORS
Vertical spindle kW AC 5.5 (7.5HP)-4P AC 7.5 (10HP)-4P AC 11 (15HP)-4P AC 11 (15HP)-4P AC 11 (15HP)-4P AC 11 (15HP)-4P
Feed of X, Y axis kW AC 1.3 (1.74HP)
Servo motor
AC 1.5 (2HP)-4P AC 1.5 (2HP)-6P
(Inverter motor)
AC 1.5 (2HP)-6P
(Inverter motor)
AC 3.5 (4.7HP)
Servo motor
AC 3.5 (4.7HP)
Servo motor
Feed of Z axis kW - - - - AC 1.3 (1.75HP)
Servo motor
AC 1.3 (1.75HP)
Servo motor
Lubrication W AC 3.5-2P AC 3.5-2P AC 3.5-2P AC 3.5-2P AC 3.5-2P AC 3.5-2P
Cutting fluid kW AC 0.1 (1/8HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P AC 0.12 (1/6HP)-2P
MACHINE SIZE
Machine height mm 2,410 (94-7/8 inch) 2,600 (102-3/8 inch) 2,870 (113 inch) 2,870 (113 inch) 2,923 (115 inch) 2,923 (115 inch)
Floor space
(Longitudinal x cross)
mm 3,200 x 1,960
(126 x78 inch)
3,800 x 2,210
(149-5/8 x 87 inch)
4,440 x 2,550
(174-7/8 x 100-3/8 inch)
5,690 x 2,550
(224 x 100-3/8 inch)
5,694 x 3,075
(224-3/16 x 121 inch)
6,940 x 3,075
(273-1/4 x 121 inch)
Net weight (Approx.) kg 4,000 (8,800 lbs) 5,200 (11,440 lbs) 7,000 (15,400 lbs) 7,700 (16,940 lbs) 11,800 (26,000 lbs) 13,200 (29,040 lbs)
Standard color   Gray Gray Gray Gray Gray Gray
*Design and specifications are subject to change without prior notice.
